When it comes to automotive safety, the Anti-Lock Brake System (ABS) is one of the most crucial advancements in modern vehicles. Originally developed for aircraft, ABS is now a standard feature in most passenger cars. But what exactly is it, how does it work, and why is it so important?
This guide will break down the technical aspects of ABS, explain its benefits, and help you understand why this system could be a lifesaver in emergency braking situations.
Understanding the Basics of the Anti-Lock Brake System
The anti-lock brake system is an active safety system that prevents the wheels from locking up during sudden braking. When a wheel locks, it stops rotating and begins to skid. This loss of traction can lead to a complete loss of steering control. It prevents this by rapidly pulsing brake pressure, allowing the wheel to maintain rotation and traction.
It doesn’t make your car stop faster on every surface, but a modern braking system helps the driver retain steering control during hard braking, especially on slippery roads.
Key Components of an ABS
To function properly, the anti-lock brake system relies on several key components that work together in real time:
1. Wheel Speed Sensors
These sensors monitor the rotational speed of each wheel. If one wheel slows significantly compared to the others, it indicates potential lock-up.
2. Electronic Control Unit (ECU)
The ECU acts as its brain. The braking system processes the sensor data and decides when to modulate brake pressure.

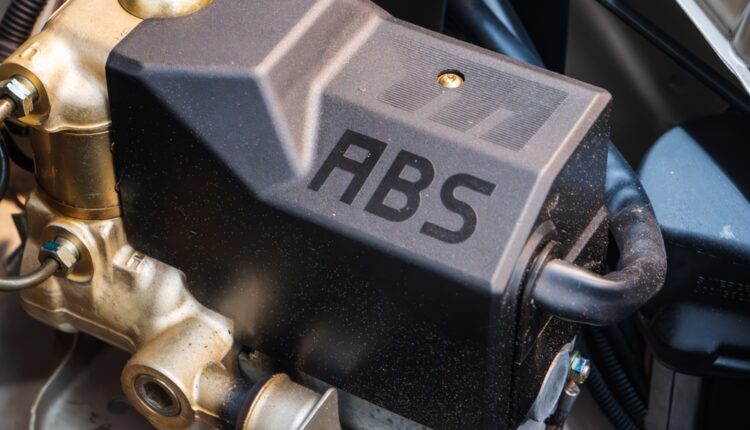

3. Hydraulic Modulator
This component adjusts the brake pressure at each wheel by rapidly applying and releasing it through valves and pumps.
Together, these components make real-time adjustments that help maintain control under panic braking conditions.
How ABS Works: A Step-by-Step Breakdown
Here’s how it works when you slam on the brakes:
-
Detection: Sensors detect that one or more wheels are about to lock.
-
Signal Processing: The ECU receives input from the sensors and determines which wheels need intervention.
-
Pressure Modulation: The hydraulic modulator activates valves to reduce brake pressure momentarily.
-
Reapplication: Brake pressure is quickly reapplied, and the process repeats multiple times per second.
This rapid modulation is so fast, drivers usually feel it as a pulsation in the brake pedal.
Types of ABS
Anti-Lock Brake System (ABS) configurations vary depending on the vehicle type and the number of channels (wheels controlled individually or in pairs):
-
Four-channel, four-sensor It offers the most precise control, with sensors and modulators for each wheel.
-
Three-channel, three-sensor systems are common in trucks, using separate control for the front wheels and a shared one for the rear.
-
One-channel, one-sensor is the basic version used in older or lower-cost models, typically for rear wheels only.
Advanced versions of modern braking systems are integrated with other systems like Electronic Stability Control (ESC) and Traction Control Systems (TCS), offering even better vehicle handling.
Benefits of an ABS
It offers several safety and performance benefits:
-
Improved Steering Control: During emergency braking, it lets you steer around obstacles instead of skidding straight ahead.
-
Shorter Stopping Distances: On wet or icy roads, it can reduce stopping distances compared to locked-wheel braking.
-
Tire Longevity: It reduces flat-spotting on tires caused by wheel lockup.
Limitations of ABS
Despite its advantages, it is not a magic solution. It cannot:
-
Prevent accidents caused by reckless driving.
-
Shorten braking distances on loose surfaces like gravel or snow.
-
Function properly if tires or brakes are poorly maintained.
- It is not effective on loose gravel and sand roads
That said, a well-maintained one still significantly enhances safety.
ABS Maintenance Tips
For your ABS to work effectively, regular maintenance is essential. Here are some tips:
-
Check the warning light: if it’s on, get the system checked immediately.
-
Maintain brake fluid levels: Low fluid can impair ABS function.
-
Inspect sensors and wiring: Dirt or corrosion on sensors can affect performance.
-
Test during normal drives: A light pedal pulsation under heavy braking is normal and indicates proper ABS function.
When Was ABS Introduced?
It was first introduced in cars during the 1970s and became widespread by the late 1990s. Today, most countries mandate it on all new vehicles, reinforcing its status as a critical automotive safety feature.
To explore the technology and safety rules in depth, head over to the NHTSA’s resource on anti-lock braking systems.
Final Thoughts
The anti-lock brake system is more than just a high-tech add-on; it’s a vital safety mechanism that can prevent skidding, retain control, and save lives. Understanding how it works and maintaining it regularly ensures that your vehicle remains as safe and responsive as possible during emergency stops.
If you’re planning to buy a new or used car, make sure to check whether it includes ABS, especially if you often drive in rainy or high-traffic conditions. It’s one of those features you hope never to need but will be thankful for when the time comes.
